3mm-6mm PET Expandable Braided Tube Sleeve Sheath Dense Car Audio Cable Wire DIY

Price: 11,81 USD

3mm-6mm PET Expandable Braided Tube Sleeve Sheath Dense Car Audio Cable Wire DIY

Product Information:

Name: Snake Skin Mesh, PET Woven Mesh Mesh (Three Wire Encryption Type)

Specifications:

3mm (flattened width about 3mm, suitable for wire outer diameter 1-3mm)

4mm (flattened width of about 4mm, suitable for wire outer diameter of 3-5mm)

4mm (flattened width of about 6mm, suitable for wire outer diameter of 6-8mm)

Temperature:- 60℃～+125℃

Melting point: 230 ℃ to 5 ℃

Flame retardant grade: UL94-V0

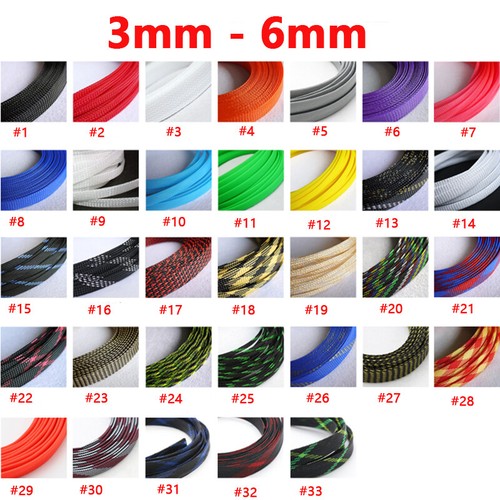

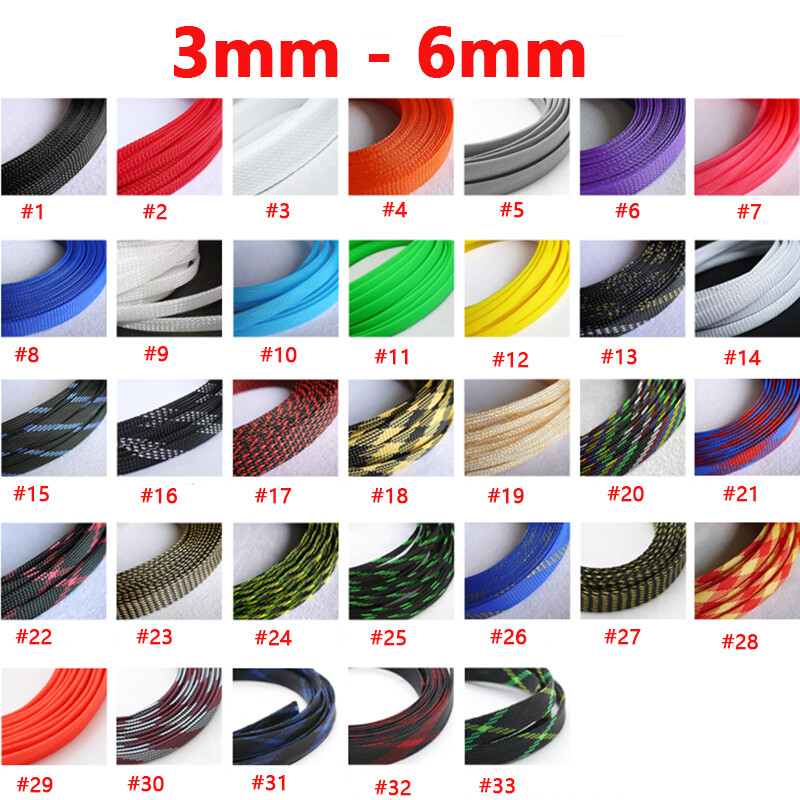

Color: Black; White; Red; Orange; silver grey; Transparent; Fluorescent blue; Fluorescent green; Fluorescent yellow, etc.

Material: Polyethylene terephthalate Polyethylene terephthalate, Abbreviated as PET)

Purpose: Used for protecting wiring harnesses such as automotive wiring, cables, light, audio, and electrical wires

Features: Good softness, easy to bend, easy to wire operation, good stretchability, elasticity, and wear resistance.

Product Overview: This product is woven from environmentally friendly PET wire and has good properties such as corrosion resistance, wear resistance, elasticity, and expandability. Its mesh has good ventilation and instant diffusion of wire heat function, and can be customized according to customer requirements.

Recommended use:

3mm is suitable for wire outer diameters ranging from 1-3mm, suitable for 16AWG, 18AWG wires, as well as single wires for 24P, 4P, 8P computer power supplies, etc.

4mm is suitable for wire outer diameter range of 3-5mm, suitable for 2-4 18AWG wires

6mm is suitable for wire outer diameters ranging from 6mm to 8mm, and is suitable for 6-8 18AWG wires;

Recommended heat shrink tubing:

3mm can be paired with φ 4mm heat shrink tube, and it is recommended to pair it with a 3.2mm double wall heat shrink tube with adhesive.

4mm can be paired with φ 5mm and φ 6mm heat shrink tubing

6mm can be paired with φ 8mm and φ 10mm heat shrink tubing

Attention: The snake skin net may shorten by about 30% while expanding. Please reserve sufficient length
