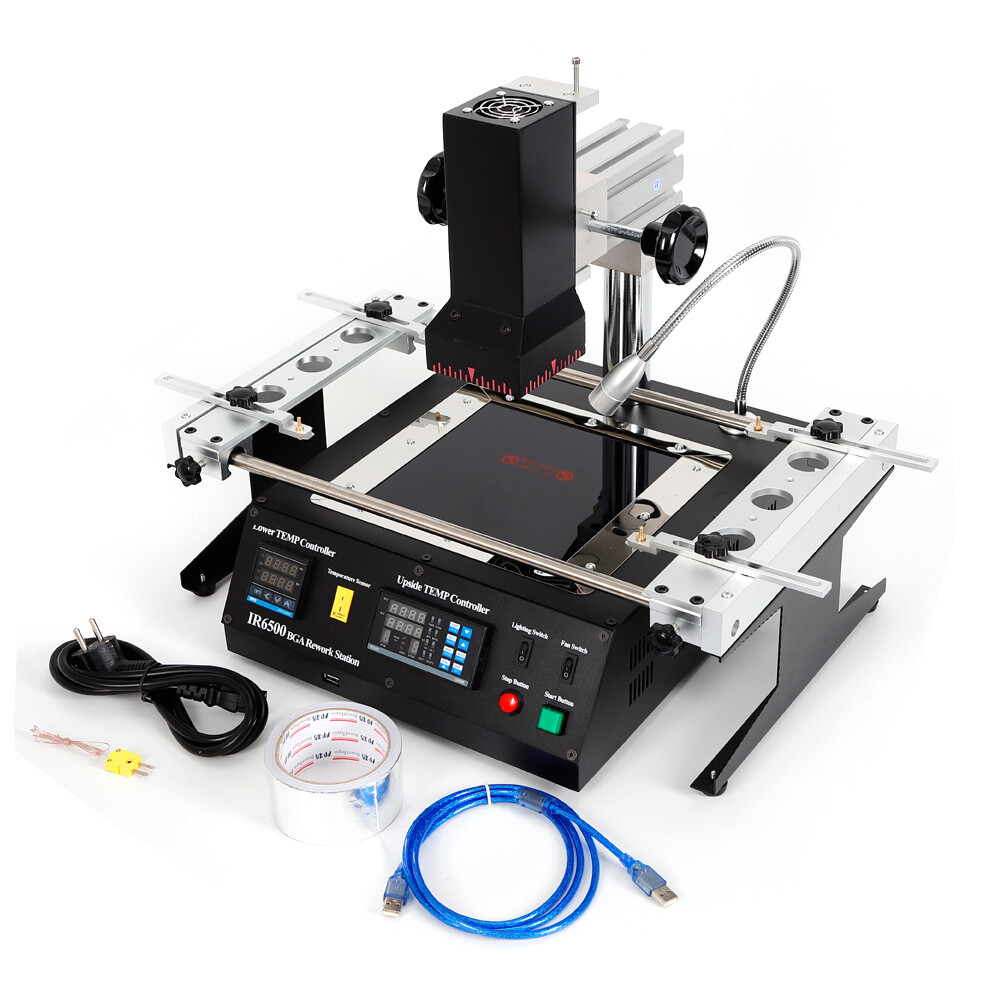

IR6500 Infrared BGA Rework Station SMD SMT Soldering Heating Welder Machine 110V

Basic Parameters:

Heating: IR

Dimension: L475mmx W480mmx H420mm

Weight: 15kg

Total weight: About 17 kg, vary with the differen need of the users

Electrical Parameters:

Power: 110V

Upper Heating: IR

Size of Upper heating: 80mm x 80mm

Consumption of upper heating: 400W

Bottom Heating: IR

Size of Bottom heating: 1200mm x1200mm

Consumption of Bottom heating: 800W

General power: 1250W

Temperature Control:

Control mode of Upper:

Independent temperature control, high-precision closed-loop control, precision ± 0.5%

Control mode of Bottom:

Independent temperature control, high-precision closed-loop control, precision ± 0.5%

Rework Function:

SMD—Suit for welding, remove or repair packaged devices such as BGA, PBGA, CSP, multi-layer substrates, EMI metallic shield product, and solder/lead-free Reworkwelding

Size of applicable chips: ≤70mm x70 mm

Size of applicable PCB: ≤400mm x305mm

Feature:

1. CE Certification

2. IR6500 Rework station for laptop motherboards, desktop computer motherboards,server boards, industrial computer boards, all kinds of game boards, communications equipment motherboards, LCD TVs and other large circuit board BGA rework.

3. IR6500 innovative designs an effective solution to general of infrared rework station vulnerable to the impact of airflow. will lead to an inaccurate temperature control that can easily deal with lead-free soldering rework.

4. It can set up 8 rising temperature segments and 8 constant temperature segments to control. It can save 10 groups of temperature curves at one time.

5. It sensitive temperature measurement sensor to obtain an accurate and instantaneous temperature reading and monitoring.

6. The BGA rework station the technology of closed-loop temperature control ensures accurate temperature process and even heat distribution.

7. Machine overall system integration Design, Rework station more integrated workbench area occupied by smaller, Didn’t mixed and disorderly of cables.

How to use:

Please download this machine USER MANUAL HERE to see how to use
