Price: 168,00 USD

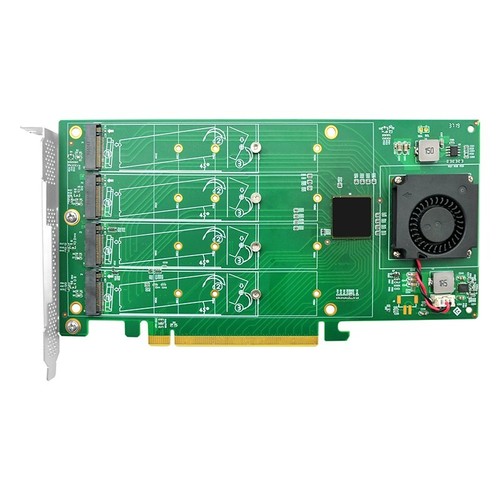

Quad PCIe 3.0 x16 M.2 NVMe Switch Controller
Product Name:PCIe 3.0 x16 Quad M.2 NVMe Switch Card
Chipset: PLX 8747
Interface Type:4*M.2 Connectors
Support Equipment: 4*NVMe SSD for 2242,2260,2280 and 22110mm
Host Bus Type: PCIe 3.0 x16
9547-4I is a PCI Express x16 Gen3 PCIe switch Card provides dedicated PCIe 3.0 x4 (32Gb/s) bus bandwidth for each M.2 SSD, and unlocks the true performance potential of NVMe based storage configurations. Ideal for servers & high-end desktop/workstation platforms,The all-aluminum casing naturally dissipates waste heat away from the SSD modules, and features an integrated fan and heat sink that work in conjunction to eject excess heat away from vital components and keep ambient temperatures manageable and cool.
Functional Characteristics
PLX PEX8747 Switch Controller has a PCIe 3.0 x16 upstream port as well as four PCIe 3.0 x4 downstream ports.
Dedicated PCIe 3.0 x16 bus bandwidth fully maximizes NVMe SSDs performance, And dedicated PCIe 3.0 x4 bandwidth for each NVMe M.2 SSD
This card does not rely on PCIe bifurcation supported by CPU or PCH
Independent, Stand Alone NVMe SSD Solution
Supports Windows 10 & Later, Windows 2016 Server, & Linux Kernel 3.3 & later
Applications
Suitable for host-centric as well as peer-to-peer traffic patterns, the LRNV9547 can be configured for a variety of graphics applications.
Advantages
Suitable for small sized M.2 SSD support PCI Express, It can get the maximum bandwidth and transfer rate while the 4 M.2 SSD installed.
Number of Device | 4 Internal |
I/O Controller | PEX8747 |
Host Bus Type | PCI Express 3.0 x16 |
Compatible Device Type | 4 NVMe M.2 SSD |
Interface | 4*M.2 |
CONNECTOR(S) | |
Device Connectors | 4* M.2 Connectors |
Host Connectors | PCIe x16 |
Operating System | |
OS supported list | Windows,Red Hat Linux,Cont0S,VMware ESXi;Ubuntu Linux, |
ENVIRONMENTAL | |
Humidity | 15% – 90% |
Operating Temperature | 5°C to 50°C (41°F to 122°F) |
Storage Temperature | -25°C to 70°C (-13°F to 158°F) |
PHYSICAL CHARACTERISTICS | |
Dimension | 111mm*210mm |
Product Weight | 302g |
WARRANTY INFORMATION | |
Warranty | 2 Years |
WHAT’S IN THE BOX | |
Included in Package | 1 – PCI Express to NVMe M.2 SSD Adapter |
1 – full-height bracket (installed) | |
4 – screws and nuts | |
Item specifics
- Condition
- Compatible Product Line
- WU
- Country/Region of Manufacture
- China
- Compatible Port
- PCI Express x16
- Compatible Brand
- LR
- External Interfaces
- M.2接口
- Number of Ports
- 4 Ports
- Form Factor
- M.2扩展
- Brand
- Unbranded
- Type
- M.2
