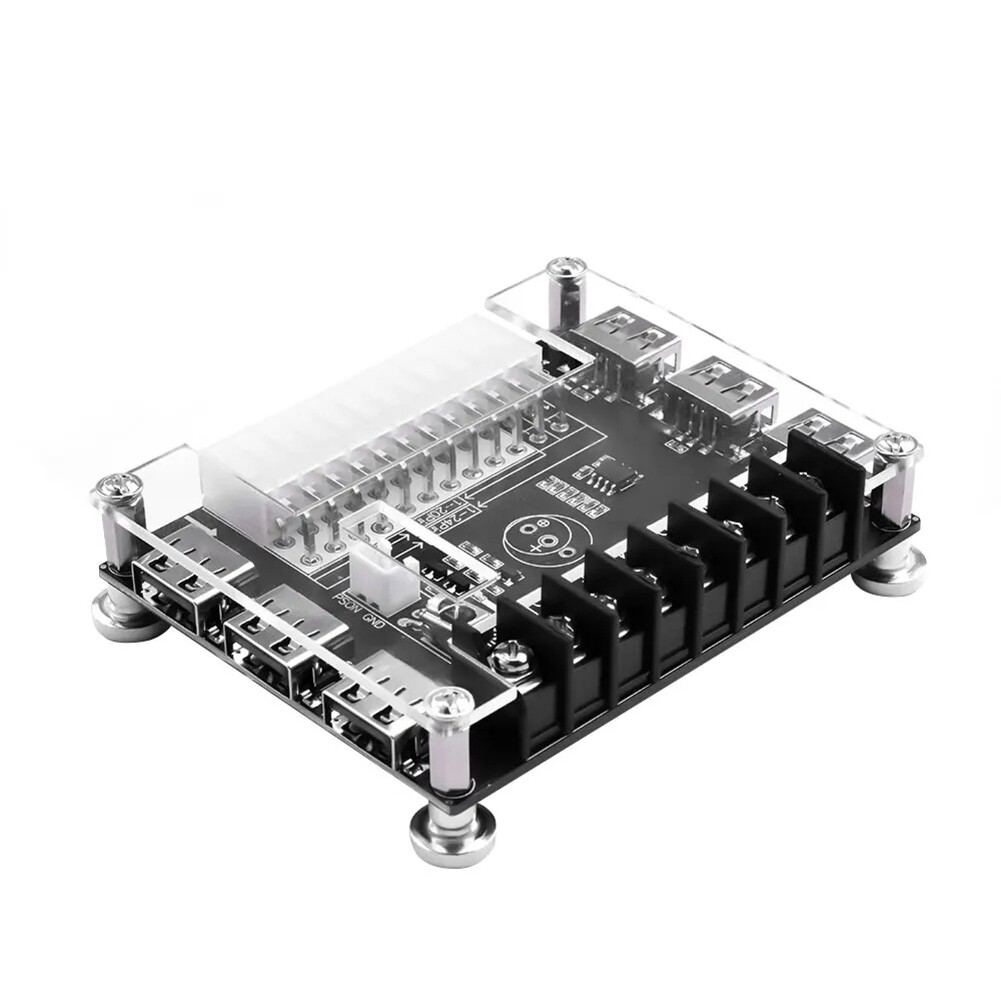

24 Pin/20Pin ATX Power Supply Breakout Board Module Adapter Power Connector2385

 Go to store

Price: 10,78 USD

With infrared function to test things like , air conditioners, , amplifiers, etc., good or bad remote controls or lack of power.

Module board is compatible with all 20Pin and 24Pin ATx computer power supplies.

With a light touch switch with a life of 550,000 cycles for easier operation.

Reserved XH2.54-2P terminal (overhang), two external wires can be used to control the ATX power supply on/off using the microcontroller Io port (5V) or the switch (easy to add a shell for modification).

The board contains 6 USB ports, each USB port can output 5V, MAX = 2.1A current, can be powered to mobile phones, tablets, mobile power, torches, electronic products aging, etc.

The module uses high-current terminals (terminal withstanding voltage 300V/can pass 20A current), solving the problem of poor wiring and bad wiring caused by terminal blocks and screw type terminals.

The module outputs +12V, -12v, +5V, 5VSB, +3.3V after power on, which enables you to make better use of the ATX power supply and facilitates your use.

Output: 5V/2A

Wiring terminals:Max 20A output

USB port: 6 groups

5 power outputs: +12V, -12v, +5V, 5VSB, +3.3V

5 types of power output indicators:

+12v normal output = blue displayed

-12V normal output = shows blue

+5V normal output = shows red

5VSB normal output = red display

3.3V normal output = red display

Compatible: with all 20-pin and 24-pin computer power supplies

type: A: with case/B: without case

Colour:Black

Material:PCB+components

Package Contents:

1 x Adaptor board

Only the above package content, other products are not included.

Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
