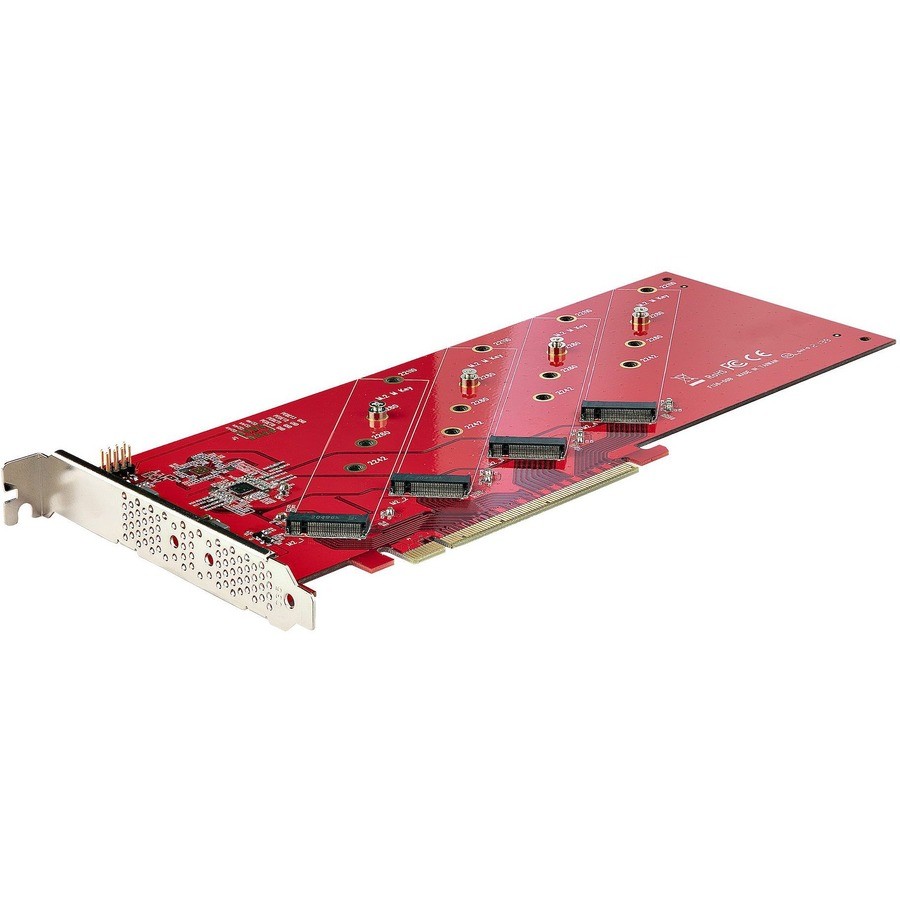

StarTech Quad M.2 PCIe Adapter Card PCIex16 QUADM2PCIECARDB
This Quad M.2 PCIe SSD Adapter adds up to four high performance PCIe M.2 SSDs (NVMe and AHCI) using the PCIe x16 slot of a desktop, workstation, or server.
Boost System Performance
Take full advantage of the fast performance and compact size of PCIe M.2 internal solid-state drives, with read and write speeds up to 7.8GBps per drive.
Access Four M.2 PCIe SSDs Simultaneously
No on-board chip leads to wide system compatibility. This card requires PCIe bifurcation, meaning it easily integrates into any system with an available x16 PCIe slot that supports PCIe bifurcation.
Utilize software RAID, such as Storage Spaces (Microsoft) or mdraid/mdadm (Linux), to build a RAID array, adding redundancy or enhancing system performance.
Wide Compatibility
The PCIe M.2 NGFF (M Key or B+M Key) adapter supports PCIe NVMe and PCIe AHCI M.2 SSDs including 2242, 2260, 2280 and 22110mm drives. The PCIe M2. Adapter Card does not require any software or drivers, meaning it works with most operating systems – if the computer/motherboard supports bifurcation.
Vented Brackets
The pre-installed full-profile vented bracket increases air flow to improve heat dissipation, which aids in maintaining optimal and reliable operating temperatures.
The QUAD-M2-PCIE-CARD-B is backed for 2-years by StarTech.com, including free 24/5 multi-lingual technical assistance
More from the Manufacturer
More from the Manufacturer
- PCI Express x16 to Quad M.2 PCIe SSD Adapter with Bifurcation
- 1 x Quick-Start Guide
- 1 x Set of Mounting Screws
Hardware
- Interface: M.2 PCIe
- Bus Type: PCI Express
- Number of Drives: 4
- Drive Size: 22 mm – M.2 NVMe
- Compatible Drive Types: M.2 (PCIe, NVMe, M-Key, NGFF)
- Drive Installation: Fixed
- SupportedDriveHeight(s):
- 2242
2260
2280
22110
Performance
- Type and Rate: PCI Express 4.0 (16 Gbps)
- Hardware Raid Supported: No
- Hot Swap Capability: No
- MTBF: 4,353,192 hrs
Connector(s)
- DriveConnectors: 4 – M.2 (NVMe, M-Key, PCIe x4)
- HostConnectors: 1 – PCI Express x16
Software
OS Compatibility: No Drivers or Software Required
Compatible Drive Types: M.2 (PCIe, NVMe, M-Key, NGFF)
- CE
- FCC
