LGA 1150 H81 Motherboard 2*DDR3 HDMI VGA for Intel i3 i5 i7 Xeon E5 V3 V4 USB3.0

 Go to store

Price: 84,89 USD

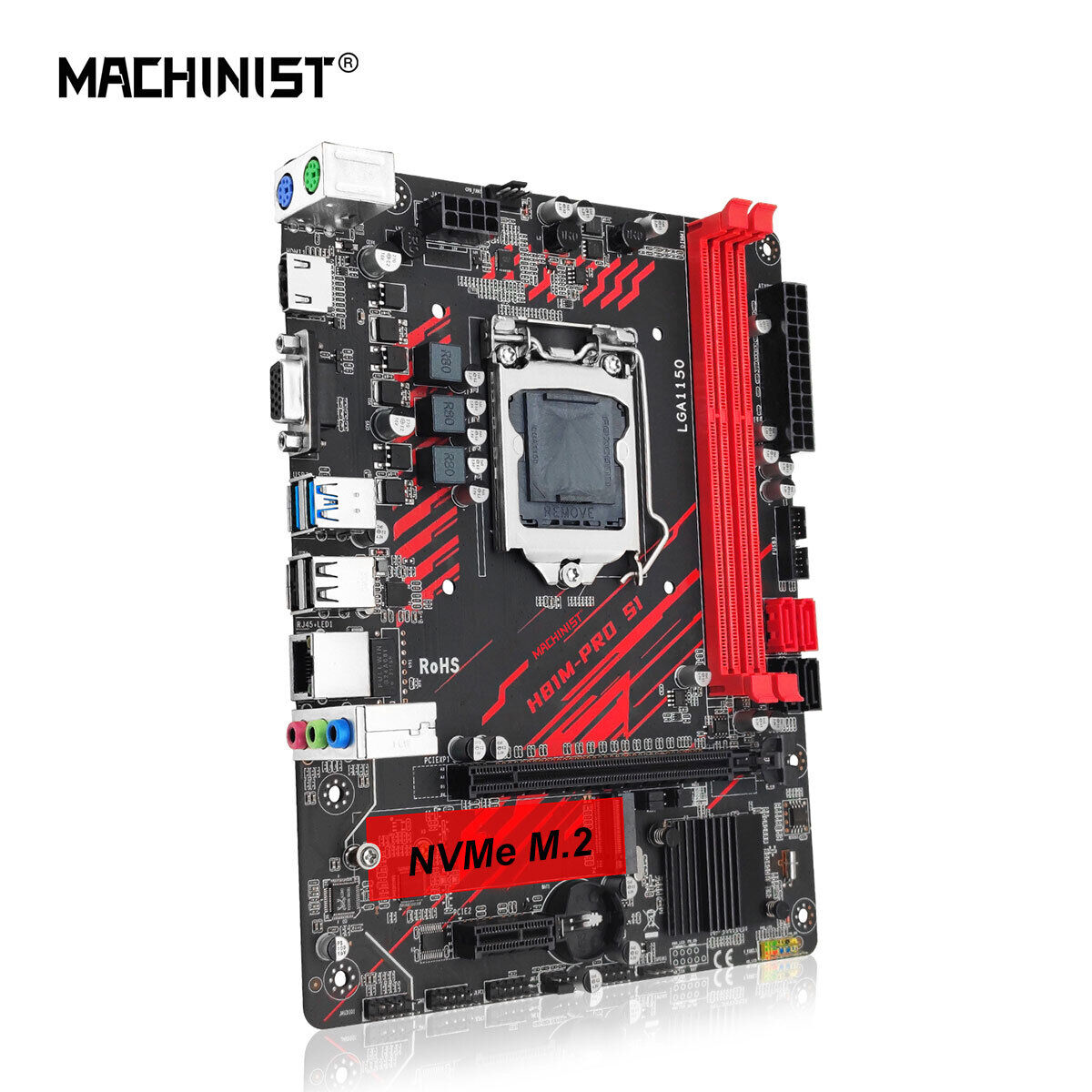

MACHINIST H81 Motherboard LGA 1150 Support Xeon E3 V3 v4 CPU Core i3 i5 i7 Processor DDR3 RAM with HDMI VGA Slot NVME M.2 USB 3.0

Feature:

100% brand new and high quality!

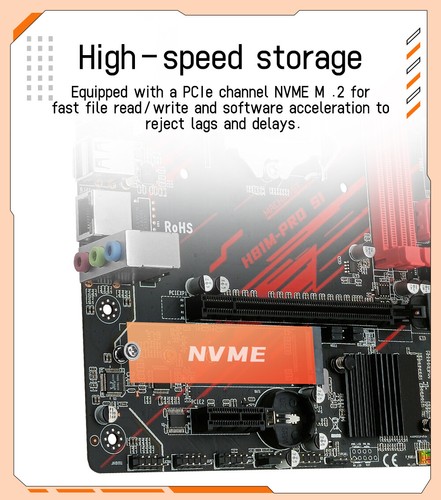

Support NVME M.2 and HDMI, VGA(D-Sub) Slot

Support DDR3 Desktop RAM and DDR3 ECC RAM

All solid capacitors, fine workmanship, and professional stability.

RAID Supported: No

Processor compatibility: Intel Core i7,Intel Core i3,Intel 0thers, Intel Xeon E3 V3 V4 CPU

Application: Desktop, Workstation,

Usage Scenario: Enthusiast, Gaming, Audio & Video, Household, Office, Design, Video Production, Server, Others

Special Function: NONE

Onboard Connectors & Header: 24-pin Main Power Connector,CPU Fan Connector(s),AAFP Connector

Back I/O Ports: 1x RJ45,VGA(D-Sub),HDMI 1.0 ,6 x Audio Jacks

Support USB Type: USB 2.0, USB 3.0

Onboard LAN: 1x RJ45

Audio Channels: 2.1

Number of M.2: 1

Number of SATA Ports: 4

Storage Interface Type: SATA 2.0, SATA3.0, NVME M.2

Number of PCI: 0

Number of PCIe x 1: 1

Number of PCIe x 4: 0

Number of PCIe x 8: 0

Number of PCIe x 16: 1

PCI – E standards: PCI – E 3.0

Number Of Memory Slots: 2

Support Memory Type: DDR3/DDR3 ECC

Quality Certification: CE, ROHS

Memory channel: Double Channels

Form Factor: CeB

Maximum Ram Capacity: 32GB

Form Factor: Micro-ATX

Chipset Manufacturer: Intel

With CPU: No

Chipset: Intel H81

Socket Type: LGA1150

Brand Name: MACHINIST

Origin: Mainland China

Specification:

Motherboard series: Intel

Chipset: H81

Motherboard model: MACHINIST

Socket: LGA 1150

Structure: Micro-ATX

Motherboard size: 220MM*170MM

Memory slot: 1.5v DDR3x2 (maximum 32GB)

Mainboard weight (including packaging): about 650g

Support memory type: DDR3 Desktop Memory (server memory is not compatible)

DDR3 memory frequency: 800/1280/1333/1600/1866/2400MHz

Support processor type: LGA1150 processor Intel Xeon E5 V3 & V4 series and Intel Core i3/i5/i7 series processors

Whether to support integrated display: Yes (requires the processor to support integrated display)

Application: Desktop, Workstation,

Usage Scenario: Enthusiast, Gaming, Audio & Video, Household, Office, Design, Video Production, Server, Others



Important! – We don’t have the User Manual & Driver in the packing box, But we have PDF versions of them, if you need them, please let us know, and we can send them to you via email. If you mind of those, please don’t purchase., thank you for your understanding and time.

Packing List:

1 * H81 Mainboard

1 * I/O Shield

1 * SATA Cable



Note:

 1:The color of the bottom plate of the slot may vary from batch to batch, but it will not affect the use of the product. The product is constantly optimized and upgraded.

 2:Please allow 1-3mm differences due to manual measurement.

 3:Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.

 4:This planform needs a powerful power supply. please make sure your power supply can be enough to support this platform. (at least 500w brand power supply)

 5:The battery in motherboard photos is not included and will be removed before shipping, as this battery is forbidden according to the logistics requirements.
